点击放大。
Click to enlarge.

尺寸设计为可以收纳在GR SUPRA后

• 由于GR Supra由宝马制造，因此在工作时需要使用与日本汽车不同的专用工具。
• 六角螺栓13/16 / 18mm /梅花螺栓T型：T15 / T20 / T25 / T30 / T50 E型：E8 / E10 / E12 / E14 / E20
• 对应于树脂插孔点的专用插孔垫
• 防止螺栓安装型车轮装卸的专用工具
• 专用工具可撬起直立在下侧支柱形前悬架上
  包括一组其他常用工具。

• 我们已经生产了TONE专用的专用工具，并为现有工具采用了TONE系列。
  *进行悬架更换工作时，需要单独的通用工具。


[Features]

• Special tools are required due to GR SUPRA being manufactured by BMW.
• Packaged 27 kinds of useful tools including special tools necessary for light tuning.
• All-purpose tools are selected from existing products and dedicated tools are newly produced by TONE.

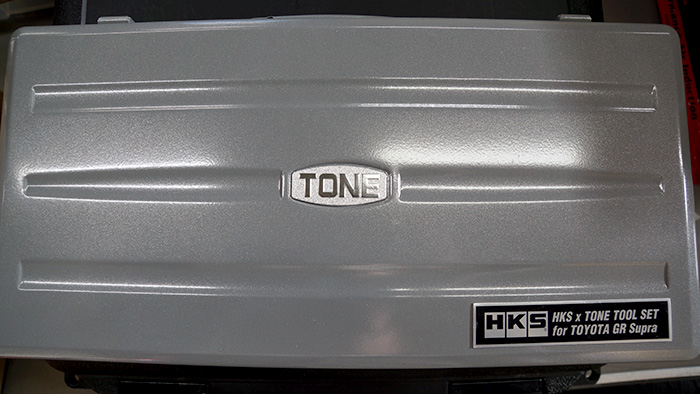

• The size of the box is 400 x 209mm and it can be stored behind the seat.

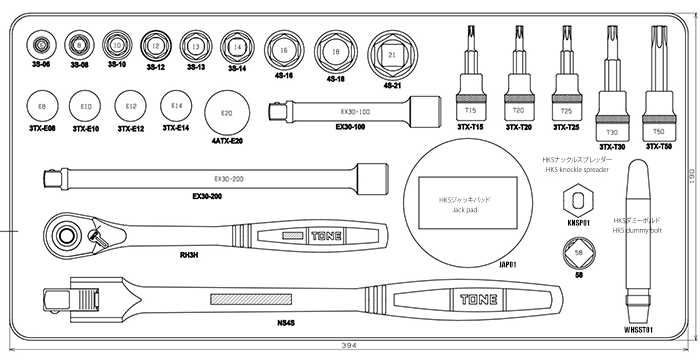

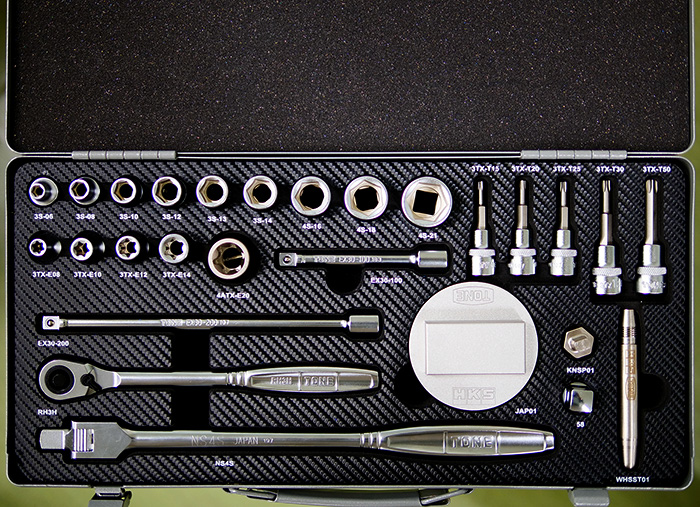

[Components]

• Jack pad: For protecting the resin jack point
• Dummy bolt: To keep bolts in place when attaching/removing a wheel. (Wheels are attached by bolts)
• Knuckle spreader: To enlarge the openings of lower knuckle at the front suspension

• Ratchet handle, extension bar (long and short), spinner handle, socket adaptor (3/8 ⇒ 1/2)
• Hexagonal sockets 6/8/10/12/13/14/16/18/21mm
• E-shaped torque sockets E8/E10/E12/E14/E20
• T-shaped torque sockets T15/T20/T25/T30/T50

Note: Please also prepare other required tools.
